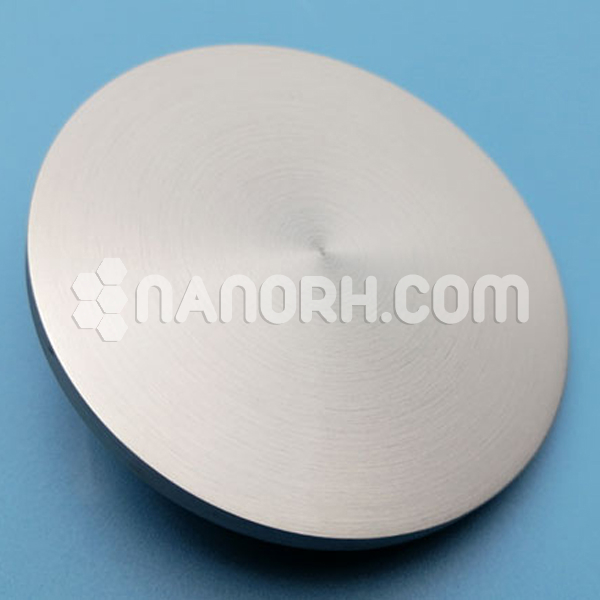

Nickel Silicide Sputtering Targets

Nickel Silicide Sputtering Targets

Introduction:

Nickel silicide (NiSi) is a compound formed from nickel and silicon, commonly used in semiconductor applications. It is characterized by its high thermal stability, good electrical conductivity, and ability to form low-resistance contacts with silicon. Nickel silicide plays a crucial role in the microelectronics industry, particularly as a contact material in integrated circuits.

Applications

Semiconductor Contacts: Nickel silicide is primarily used to form source and drain contacts in MOSFETs (metal-oxide-semiconductor field-effect transistors) and other semiconductor devices. Its low resistivity improves the electrical performance of these components.

Interconnects: Due to its excellent conductivity and thermal stability, nickel silicide is employed in interconnects within integrated circuits, enhancing the performance and reliability of electrical connections.

Silicon Photovoltaics: Nickel silicide is used in solar cells to create efficient electrical contacts, contributing to better energy conversion efficiency and overall performance.

Microelectromechanical Systems (MEMS): In MEMS devices, nickel silicide can be utilized for various applications, including sensors and actuators, owing to its favorable electrical and mechanical properties.

Thin Film Technology: Nickel silicide sputtering targets are used in the fabrication of thin films for electronic devices, where controlled deposition is critical for achieving desired material properties.

Thermal Management: Due to its thermal stability, nickel silicide can be used in applications requiring effective heat dissipation, making it valuable in high-performance electronics.

Resistive Switching Devices: Research is ongoing into the use of nickel silicide in resistive switching memory devices, which are promising for future non-volatile memory technologies.
