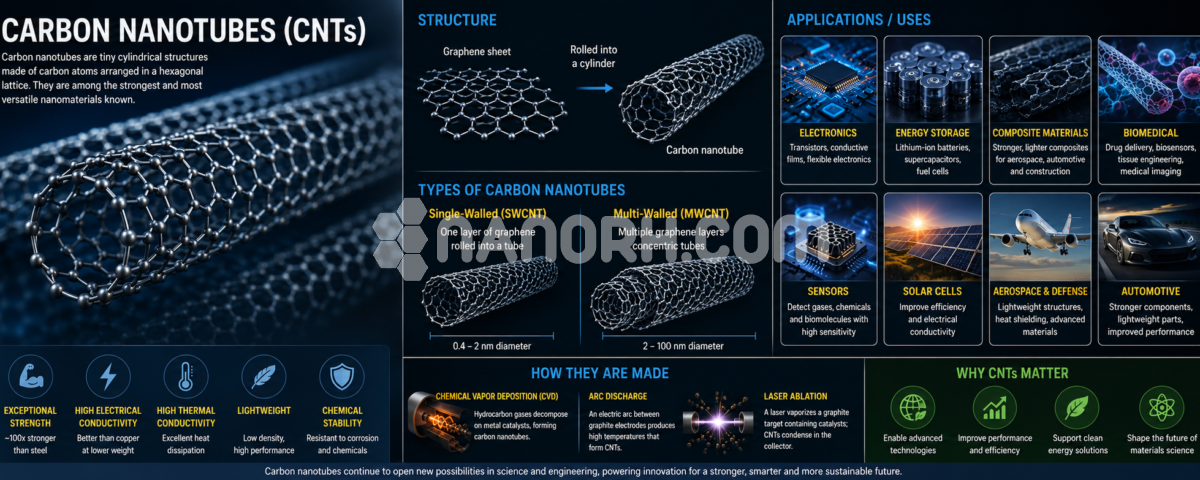

What Are Carbon Nanotubes?
Carbon Nanotubes
Carbon Nanotubes (CNTs) are among the most remarkable nanomaterials discovered in modern science. Since their discovery in 1991, they have revolutionized the fields of nanotechnology, materials science, electronics, energy storage, and biomedical engineering. Due to their extraordinary strength, electrical conductivity, thermal stability, and lightweight nature, carbon nanotubes are widely regarded as one of the most promising materials for future technologies.
In simple terms, carbon nanotubes are cylindrical nanostructures made entirely of carbon atoms arranged in a hexagonal pattern, similar to a rolled-up sheet of graphene. Their unique atomic structure gives them exceptional physical and chemical properties that are difficult to achieve with conventional materials.
This article explores what carbon nanotubes are, their types, properties, manufacturing methods, applications, advantages, and future potential.
What Are Carbon Nanotubes?
Carbon nanotubes are hollow cylindrical tubes composed of carbon atoms bonded together in a hexagonal lattice. These tubes have diameters typically ranging from less than 1 nanometer to several hundred nanometers, while their lengths can extend to several micrometers or even centimeters.
The structure of a carbon nanotube can be imagined as a single sheet of graphene rolled into a seamless cylinder. Because of their nanoscale dimensions and highly ordered carbon arrangement, CNTs exhibit extraordinary mechanical, electrical, and thermal properties.
Carbon nanotubes belong to the fullerene family of carbon materials, which also includes graphene and buckminsterfullerene (C60).
Types of Carbon Nanotubes
Carbon nanotubes are generally classified into two main categories:
-
Single-Walled Carbon Nanotubes (SWCNTs)
Single-walled carbon nanotubes consist of a single graphene sheet rolled into a cylindrical tube.
Characteristics:
- Diameter typically between 0.4 and 2 nanometers
- High electrical conductivity
- Excellent flexibility
- Superior thermal conductivity
- Ideal for electronic and sensing applications
SWCNTs can behave as either metallic or semiconducting materials depending on their atomic arrangement.
-
Multi-Walled Carbon Nanotubes (MWCNTs)
Multi-walled carbon nanotubes consist of multiple concentric graphene cylinders nested within one another.
Characteristics:
- Diameter ranges from 2 to over 100 nanometers
- Higher mechanical robustness
- Easier and less expensive to manufacture
- Greater resistance to structural defects
MWCNTs are widely used in composites, coatings, batteries, and industrial applications.
Structure of Carbon Nanotubes
The atomic arrangement of carbon atoms within a nanotube determines many of its properties.
There are three common structural configurations:
Armchair Nanotubes
These nanotubes exhibit excellent electrical conductivity and behave as metallic conductors.
Zigzag Nanotubes
Depending on their structure, zigzag nanotubes may exhibit either metallic or semiconducting behavior.
Chiral Nanotubes
These possess a spiral arrangement and often display semiconducting characteristics.
The chirality, or angle at which graphene is rolled, significantly affects the electronic properties of the nanotube.
Unique Properties of Carbon Nanotubes
Exceptional Mechanical Strength
Carbon nanotubes are among the strongest materials ever discovered.
- Tensile strength up to 100 times greater than steel
- Extremely lightweight
- High flexibility without breaking
These properties make CNTs ideal for advanced structural materials.
Outstanding Electrical Conductivity
Many carbon nanotubes can conduct electricity better than copper while being significantly lighter.
Advantages include:
- Low electrical resistance
- High current-carrying capacity
- Potential use in nanoelectronics
CNTs are considered promising materials for next-generation electronic devices and conductive coatings.
Superior Thermal Conductivity
Carbon nanotubes possess thermal conductivity values that exceed most conventional materials.
Benefits include:
- Efficient heat dissipation
- Thermal management in electronics
- Improved battery performance
Their thermal conductivity can exceed 3,000 W/m·K under ideal conditions.
Chemical Stability
CNTs exhibit excellent resistance to:
- Corrosion
- Chemical degradation
- Environmental stress
This makes them suitable for harsh industrial environments.
High Surface Area
Carbon nanotubes possess an extremely large surface-area-to-volume ratio.
This characteristic enhances:
- Catalyst performance
- Energy storage efficiency
- Sensor sensitivity
Methods of Carbon Nanotube Synthesis
Several techniques are used to manufacture carbon nanotubes.
Chemical Vapor Deposition (CVD)
CVD is the most widely used commercial method.
Process:
- Hydrocarbon gases are introduced into a reactor.
- Metal catalysts such as iron, nickel, or cobalt are used.
- Carbon atoms deposit and grow into nanotubes.
Advantages:
- Scalable production
- Cost-effective
- High yield
Arc Discharge Method
In this process:
- An electric arc is generated between graphite electrodes.
- Carbon vapor condenses to form nanotubes.
Advantages:
- High-quality CNTs
- Good crystallinity
Limitations:
- Lower scalability
- Requires purification
Laser Ablation
A high-powered laser vaporizes a graphite target containing catalyst particles.
Advantages:
- Produces high-purity nanotubes
- Excellent structural quality
Limitations:
- Expensive equipment
- Lower production volume
Applications of Carbon Nanotubes
Electronics and Semiconductors
Carbon nanotubes are used in:
- Transistors
- Flexible electronics
- Conductive films
- Integrated circuits
Their nanoscale dimensions enable miniaturization of electronic devices.
Energy Storage
CNTs play an important role in:
- Lithium-ion batteries
- Supercapacitors
- Fuel cells
- Solar cells
They improve electrical conductivity and energy storage capacity.
Composite Materials
Carbon nanotubes are incorporated into polymers, ceramics, and metals to enhance:
- Strength
- Durability
- Thermal stability
- Electrical conductivity
Industries benefiting include aerospace, automotive, and construction.
Biomedical Applications
Researchers are exploring CNTs for:
- Drug delivery systems
- Tissue engineering
- Biosensors
- Medical imaging
Their high surface area and functionalization capabilities make them attractive for healthcare applications.
Sensors
CNT-based sensors offer:
- High sensitivity
- Fast response times
- Detection of gases, chemicals, and biological molecules
Applications include environmental monitoring and industrial safety.
Aerospace and Defense
Carbon nanotube composites provide:
- Reduced weight
- Increased strength
- Enhanced durability
These properties are valuable for aircraft, satellites, and military equipment.
Advantages of Carbon Nanotubes
Carbon nanotubes offer numerous benefits:
- Extremely high strength-to-weight ratio
- Excellent electrical conductivity
- Superior thermal conductivity
- Large surface area
- Chemical stability
- Enhanced performance in composites
- Potential for miniaturized electronic devices
These advantages continue to drive research and commercial adoption worldwide.
Challenges and Limitations
Despite their impressive properties, carbon nanotubes face certain challenges:
High Production Costs
Manufacturing high-purity CNTs remains relatively expensive.
Dispersion Issues
CNTs tend to agglomerate, making uniform dispersion in matrices difficult.
Purification Requirements
Many synthesis methods produce impurities that require additional processing.
Health and Environmental Concerns
Researchers continue to study the long-term environmental and biological impacts of carbon nanotubes.
Proper handling and safety measures are essential during production and application.
Future of Carbon Nanotubes
The future of carbon nanotubes is highly promising. Ongoing research focuses on improving production efficiency, reducing costs, and expanding commercial applications.
Emerging technologies expected to benefit from CNTs include:
- Flexible and wearable electronics
- Advanced energy storage systems
- Electric vehicles
- Smart textiles
- Artificial intelligence hardware
- Quantum computing components
- Next-generation aerospace materials
As manufacturing technologies mature, carbon nanotubes are likely to become a key material in numerous industries.
Conclusion
Carbon nanotubes represent one of the most significant breakthroughs in nanotechnology and advanced materials science. Their unique combination of exceptional strength, lightweight nature, superior electrical conductivity, and excellent thermal performance makes them valuable across a wide range of industries.
From electronics and energy storage to aerospace, healthcare, and environmental monitoring, carbon nanotubes continue to open new possibilities for innovation. Although challenges related to cost, scalability, and safety remain, ongoing research is steadily overcoming these obstacles. As technology advances, carbon nanotubes are expected to play a critical role in shaping the future of high-performance materials and next-generation engineering solutions.
