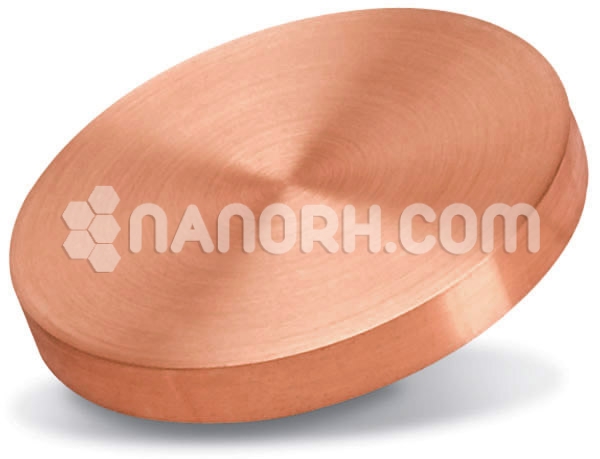

Copper Sputtering Target

Copper Sputtering Target

Copper sputtering targets are used in a variety of applications, primarily in the deposition of thin films through a process called sputtering. Here are some common applications.

Semiconductor Manufacturing: Copper is frequently used in the semiconductor industry to create interconnects in integrated circuits. Sputtering is used to deposit copper films onto silicon wafers to form the necessary circuitry.

Thin Film Coatings: Copper sputtering targets are used to create thin film coatings for various electronic devices, including sensors and magnetic storage media. These films can improve electrical conductivity and other material properties.

Solar Cells: In photovoltaic technology, copper is used in certain types of solar cells. Sputtering is employed to deposit copper layers that form part of the cell’s structure or contacts.

Optical Coatings: Copper sputtering is used to deposit thin copper films for optical coatings, which can be used in mirrors, lenses, and other optical components.

Decorative Coatings: Copper sputtering is also used in the production of decorative coatings. The deposited copper can give a metallic finish to various products, including jewelry and consumer electronics.

Hard Disk Drives: In data storage devices like hard disk drives, copper thin films are used to create magnetic layers. Sputtering helps in achieving the precision needed for high-density data storage.

In each of these applications, the sputtering process involves bombarding the copper target with energetic ions in a vacuum chamber, causing atoms from the target to be ejected and deposited onto a substrate to form a thin film.
