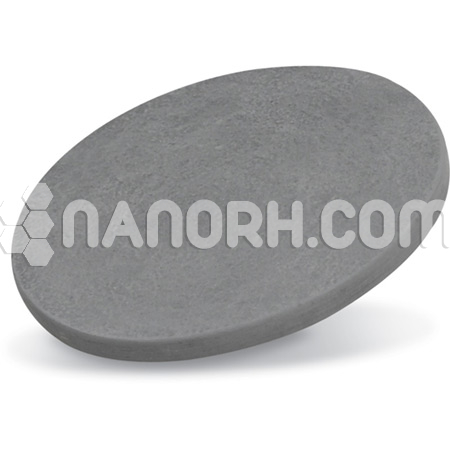

Lead Sulfide Sputtering Targets

Lead Sulfide Sputtering Targets

Applications

Lead sulfide sputtering targets is a semiconductor material with notable properties, particularly in the infrared range. Sputtering targets made from lead sulfide are utilized in various applications across different fields.

Infrared Detectors: PbS is widely used in infrared detectors, particularly for sensing applications in thermal imaging and gas detection. Its sensitivity to infrared radiation makes it suitable for night vision devices and surveillance systems.

Photovoltaic Cells: Lead sulfide can be used in thin-film solar cells, particularly in applications focusing on the infrared spectrum. It helps improve the efficiency of solar energy conversion.

Optoelectronic Devices: PbS is employed in various optoelectronic applications, including light-emitting diodes (LEDs) and photodetectors. Its ability to be tuned for specific wavelengths enhances device performance.

Quantum Dots: Lead sulfide quantum dots are explored for advanced display technologies and biological imaging, leveraging their size-dependent optical properties.

Thermoelectric Materials: PbS can be used in thermoelectric applications, where it can generate electricity from temperature differences, contributing to energy harvesting technologies.

Gas Sensors: Due to its sensitivity to specific gases, lead sulfide is used in gas sensing applications, enabling the detection of environmental pollutants and hazardous substances.

Research Applications: PbS thin films are often used in scientific research to study the properties of semiconductors and their applications in nanotechnology and material science.
