Niobium Carbide Powder / NbC Powder (NbC, 99.9%, 1-3um)


Niobium Carbide Powder / NBC Powder (NBC, 99.9%, 1-3um)

Niobium Carbide Powder / NBC Powder (NBC, 99.9%, 1-3um)
Product No. CAS No. Formula Molecular Weight APS Purity Color Form
NRE-3062 12069-94-2 NbC 104.92g/mol 1-3um(can be customized) 99.9% Gray black Powder
Density 7.82g/cm3
Melting Point 3490 °C
Boiling Point 4300 °C
Certificate of Analysis
Nb C O Fe Mo N Other
88.5% 11.4% 0.09% 200ppm 50ppm 50ppm 300ppm

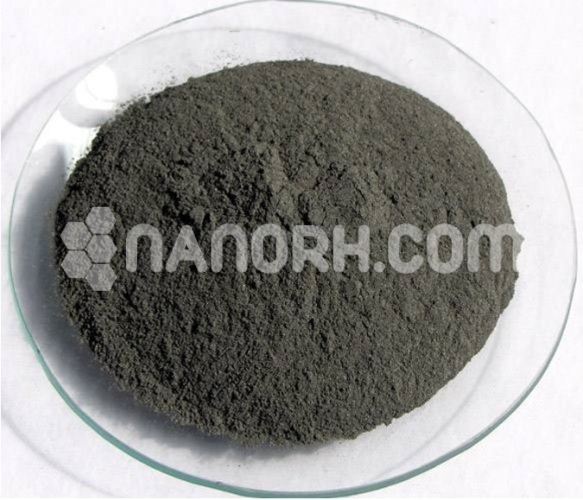

Niobium carbide powder is an extremely hard refractory ceramic material used commercially in drill bits for cutting tools. It is usually processed by sintering and is a frequent additive as a grain growth inhibitor in cemented carbides. It has the appearance of a brownish gray metallic powder with violet reflections. It is highly resistant to corrosion. Niobium carbide is a frequent and intentional product in microalloyed steels thanks to its low solubility product in austenite, the lowest of all refractory metal carbides. This means that the micron-sized NbC precipitates are practically insoluble in robberies at all processing temperatures and their position in the grain boundaries helps prevent excessive grain growth in these steels. This is of enormous benefit and the cornerstone of microalloyed steels because it is its uniform and very fine grain that guarantees both strength and strength. The only compound that commonly occurs with less solubility and, therefore, greater potential for limiting the growth of grains of steels is titanium nitride. Depending on the grain size, niobium carbide can burn at 200-800 ° C in the air. A layer of niobium carbide can be created by chemical vapor deposition. Zirconium carbide and niobium carbide can be used as refractory linings in nuclear reactors.

Provide us an opportunity to fulfill all your requirements related to nano-materials Call us at +91-7864020002,+1-518-889-9730 Or Email Us at [email protected]

Contact for SDS
