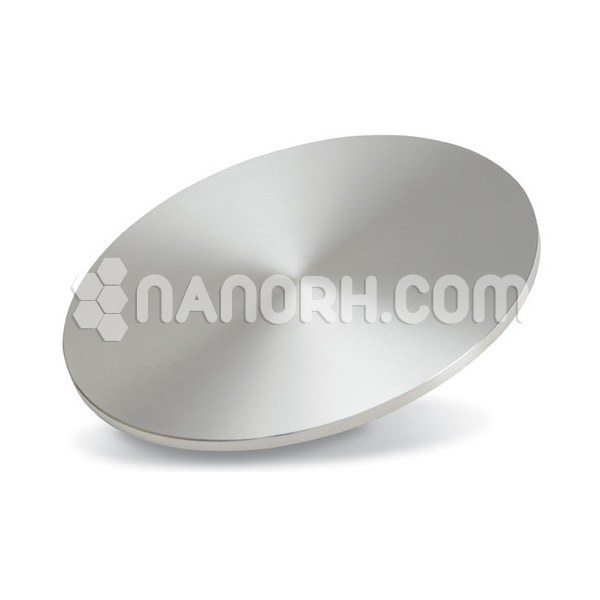

Potassium Niobate Sputtering Targets

Potassium Niobate Sputtering Targets

Potassium niobate sputtering targets is a versatile material used in various applications, particularly in the fields of electronics and optics. Here are some key points about its sputtering targets and applications.

Sputtering Targets

Material Properties:

Potassium niobate is a ferroelectric and piezoelectric material, making it useful for a range of electronic and optical applications.

It has a high dielectric constant and good optical transparency.

Sputtering Process:

Sputtering is a physical vapor deposition (PVD) technique used to create thin films of materials. KNbO₃ sputtering targets are used to deposit high-quality thin films on substrates.

The process involves bombarding the target material with energetic ions, causing atoms to be ejected and deposited onto a substrate.

Target Fabrication:

Targets are typically made from high-purity potassium niobate ceramics.

They can be shaped into various forms depending on the deposition equipment used.

Applications

Optoelectronics:

Used in the fabrication of waveguides, optical switches, and other photonic devices due to its nonlinear optical properties.

Ferroelectric Devices:

Employed in the production of capacitors and memory devices, where the ferroelectric properties are beneficial for data storage.

Sensors and Actuators:

Potassium niobate thin films are used in sensors and actuators due to their piezoelectric properties, which allow them to convert mechanical stress into electrical signals and vice versa.

Transducers:

Used in ultrasound transducers and other applications that require efficient conversion between electrical and mechanical energy.

Nonlinear Optical Devices:

Used in devices like frequency doublers and optical parametric oscillators due to their ability to generate second-harmonic signals.
