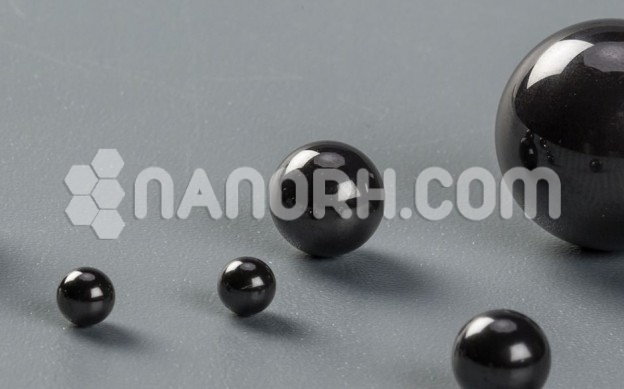

Silicon Nitride Metal Ball (Si3N4, Purity: 92-95%, Dia: 5 mm)
Silicon Nitride Metal Ball (Si3N4, Purity: 92-95%, Dia: 5 mm)
| Silicon Nitride Metal Ball (Si3N4, Purity: 92-95%, Dia: 5 mm) | |||||||
|---|---|---|---|---|---|---|---|
| Product No. | CAS | Purity | Dia | Bending Strength | Surface | Boiling Point | Thermal Conductivity |
| NRE-52034 | 12033-89-5 | 92-95% | 5 mm | 600-1000 Mpa | High Polished, Mirror Surface | 3265 °C | 35 W/mk |
| Fracture Toughness | 5.0-7.0 MPam½ | ||||||
| Max Working Temperature | 800 °C | ||||||
| Molecular Weight | 28.085 g/mol | ||||||
| Certificate of Analysis | ||||||
|---|---|---|---|---|---|---|
|
Fe |
Al |
Ca |
C |
O2 |
Free Si |
Halides |
|
<0.05 % |
<0.04 % |
<0.005 % |
<0.3 % |
<1.3 % |
<0.15 % |
<0.002 wt% |
