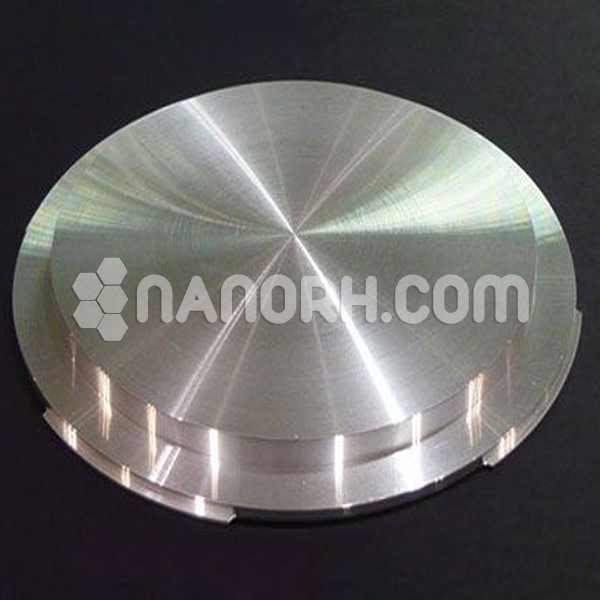

Antimony Selenide Sputtering Targets

Antimony Selenide Sputtering Targets

Antimony Selenide Sputtering Targets
Product No NRE-43318
CAS No. 1315-05-5
Formula Sb2Se3
Molecular Weight 480.4
Purity >99.9%
Density 5.81 g/cm3
Thickness 3 mm ± 0.5mm (can be customized)
Diameter 50 mm ± 1mm (can be customized)
Shape Round
Resistivity NA
Thermal Conductivity NA

Antimony Selenide Sputtering Targets

Antimony Selenide Sputtering Targets

Antimony selenide (Sb₂Se₃) sputtering targets are used in various applications due to their unique properties. Here are some key applications:

Photovoltaic Cells: Antimony selenide is used in thin-film solar cells. It is valued for its direct bandgap and high absorption coefficient, making it efficient for light absorption and energy conversion in solar panels. Sb₂Se₃-based solar cells are being researched for their potential to offer high efficiency and lower production costs compared to traditional silicon-based cells.

Optoelectronic Devices: Sb₂Se₃ is utilized in optoelectronic devices, such as photodetectors and light-emitting devices. Its optical properties can be tailored for specific wavelengths, making it useful in various optical and electronic applications.

Semiconductor Materials: Antimony selenide is used as a semiconductor material in various electronic applications. Its electrical properties are exploited in the development of electronic components and circuits.

Thermoelectric Materials: In thermoelectric applications, antimony selenide can be used to create materials that convert heat into electricity or vice versa. This is valuable for energy harvesting and cooling applications.

Thin-Film Coatings: Sb₂Se₃ is employed in the deposition of thin films for various coating applications. These coatings can be used to enhance the performance of electronic devices, improve optical properties, or provide protective layers.

X-ray Detectors: Antimony selenide is used in X-ray detection technology due to its high atomic number and ability to absorb X-rays efficiently. This makes it useful in medical imaging and other X-ray-based applications.

Thermal Imaging: The material’s properties are also used in thermal imaging devices. Sb₂Se₃’s ability to detect infrared radiation makes it suitable for thermal cameras and other imaging technologies.

In summary, antimony selenide sputtering targets are used in advanced materials and technologies, particularly where specific optical, electronic, or thermoelectric properties are required.
