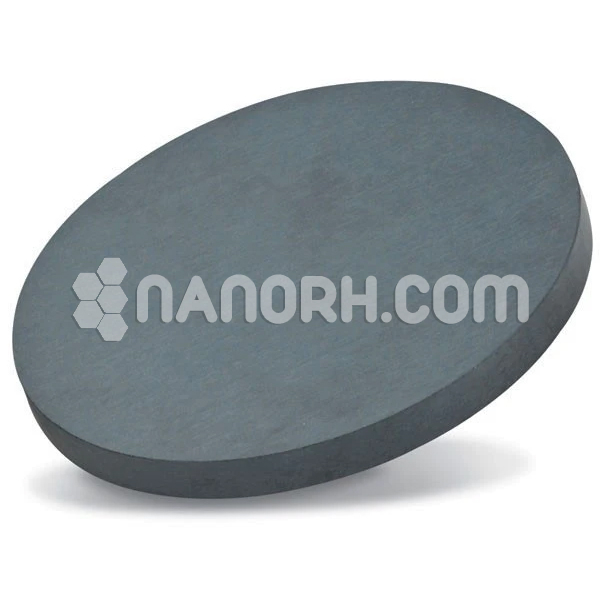

Nickel Telluride Sputtering Targets
Nickel Telluride Sputtering Targets
Nickel Telluride Sputtering Targets | |
Product No | NRE-43523 |
CAS No. | 12142-88-0 |
Formula | NiTe |
Molecular Weight | 186.29 |
Purity | >99.9% |
Density | 7.3 g/cm3 |
Thickness | 3 mm ± 0.5mm (can be customized) |
Diameter | 50 mm ± 1mm (can be customized) |
Shape | Round |
Resistivity | NA |
Thermal Conductivity | NA |
Nickel Telluride Sputtering Targets
Introduction
Nickel telluride (NiTe) is a compound formed from nickel and tellurium, exhibiting unique electrical and optical properties. It typically exists in a hexagonal crystal structure and is recognized for its semiconducting behavior, making it of interest in various applications, particularly in electronics and materials science.
Applications
Semiconductor Devices: Nickel telluride is primarily used in the fabrication of semiconductor devices. Its properties enable it to function effectively in applications such as thin-film transistors and photodetectors.
Thermoelectric Materials: Due to its favorable thermoelectric properties, nickel telluride is used in thermoelectric devices, which convert temperature differences into electrical voltage. This application is valuable for power generation and cooling technologies.
Photovoltaics: Nickel telluride can be explored in thin-film solar cells as a p-type semiconductor material, enhancing energy conversion efficiency when combined with n-type materials.
Gas Sensors: Nickel telluride thin films are employed in gas sensing applications, particularly for detecting toxic gases such as hydrogen sulfide (H₂S) and other environmental pollutants.
Magnetic Materials: Research into nickel telluride has revealed interesting magnetic properties, making it suitable for applications in spintronics and magnetic devices.
Catalysis: Nickel telluride may serve as a catalyst in specific chemical reactions, particularly in hydrogen generation and organic synthesis processes.
Optoelectronic Devices: The optical properties of nickel telluride make it suitable for use in optoelectronic devices, where it can be used in photonic applications.
