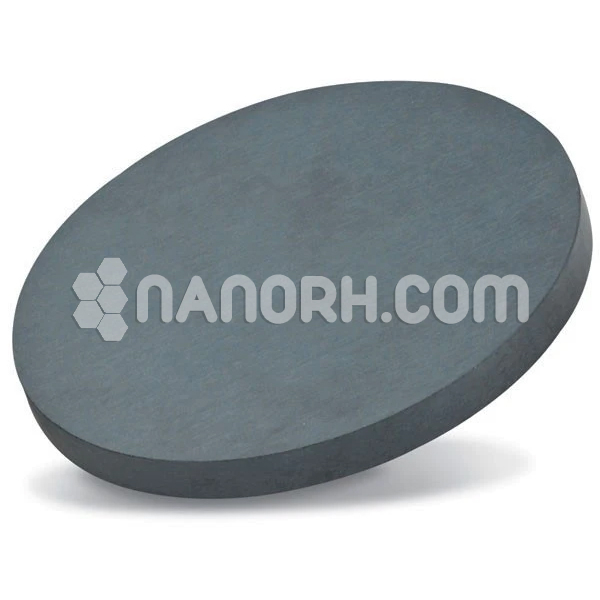

Indium Antimonide Sputtering Targets

Indium Antimonide Sputtering Targets

Applications

Indium antimonide (In₂Sb₃) sputtering targets are utilized in various advanced applications due to their unique electrical and optical properties, particularly in the infrared spectrum. Here are the primary applications.

Infrared Detectors:

In₂Sb₃ is widely used in the fabrication of infrared detectors, which are essential for thermal imaging and spectroscopy. Its sensitivity to infrared radiation makes it suitable for military, surveillance, and industrial applications.

Thermal Imaging Cameras:

The material is employed in thermal imaging devices, providing high-resolution imagery based on infrared radiation detection. This is crucial for applications like search and rescue, firefighting, and security.

Optoelectronic Devices:

In₂Sb₃ is used in various optoelectronic applications, including infrared light-emitting diodes (LEDs) and laser diodes, enabling efficient infrared light emission.

Semiconductor Applications:

The compound can be utilized in electronic devices such as transistors and integrated circuits, particularly in applications that require high sensitivity and low noise levels.

Thermoelectric Devices:

In₂Sb₃ can also be used in thermoelectric applications, where it converts temperature differences into electrical voltage, suitable for power generation and cooling systems.

Research and Development:

Indium antimonide sputtering targets are important in materials science research, allowing scientists to explore new properties and functionalities in thin films for emerging infrared and optoelectronic technologies.

In summary, In₂Sb₃ sputtering targets are crucial for advancing technologies in infrared detection and optoelectronics, enabling the production of high-quality thin films that meet the demands of various high-tech applications.
